Place of Origin: | China |
Hàng hiệu: | JVT |
Chứng nhận: | ISO9001/SGS/UL/ROHS/Reach |
Model Number: | JVT4002W46-01SN-S |
Minimum Order Quantity: | 800/1000/1500 PCS/reel |
---|---|
Giá bán: | Negotiation |
Packaging Details: | PE bag packing +outer carton |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T or Western Union |
Supply Ability: | 300000 per month |
Pitch: | 4.0mm | No.of Contacts: | 1 |
---|---|---|---|
Rating Current: | 9A, AC,DC | type: | SMD Led connector ,terminal block |
Packing: | 800pcs/Reel | Equivalent: | Wago |

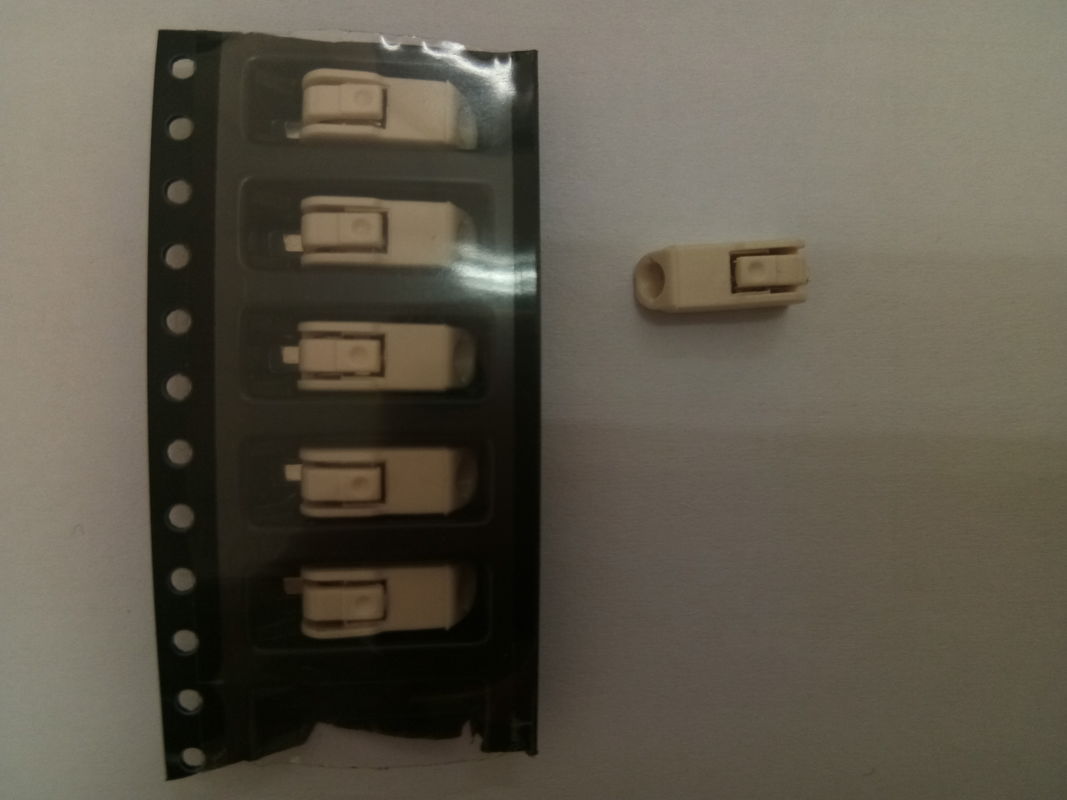

Equivalent of Wago, 3 Pole SMD LED Connector 4.0mm Pitch with PA46 UL94V-0 Housing
Specification Standardized:
Pitch |
4.0mm |
Pins |
3 |
Pin Material |
Phospher copper Gold Flash/Tin-plated |
Rating Voltage |
500V AC/DC |
Rating Current |
9A AC/DC |
Withstand voltage |
2000V AC/minute |
Operating temperature |
-25°C to +85°C |
Insulation resistance |
500MΩ Min |
Contact resistance |
20MΩ Max. |
Technical Datasheet:
Payment Details:
Payment Terms:T/T or Western Union
MOQ:1000 Pieces/Reel
We are connectors manufacturer with over 15 years experience.
1. Complete Product range.
2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.
3. Close to Shenzhen Port.
4. Punctual & Short lead time.
5. Good quality & Competitive Price.
|
