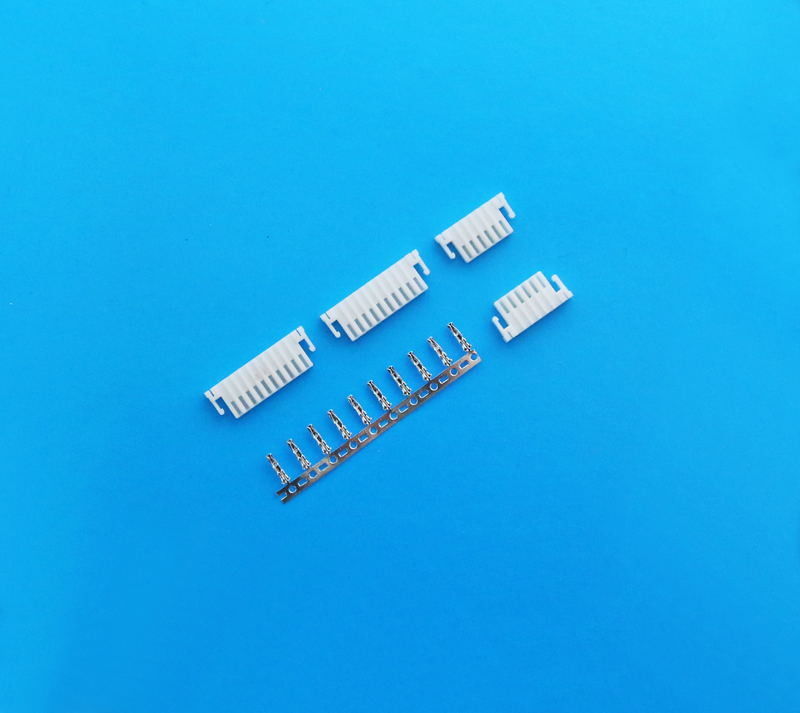

YH 2.0mm Pitch housing Wire to Board Connector with Locking ,Tin Plating
Datasheet (PDF) & Other Documents Download center:
1.JVT2017HN0-XXL.pdf
2.JVT2017TP-SNS.pdf
Specification Standardized:
|
Pitch
|
2.0mm
|
|
Cuic
|
2-16
|
|
Applicable wire
|
AWG 22-28
|
|
Rating Voltage
|
250V AC/DC
|
|
Rating Current
|
3A AC/DC
|
|
Withstand voltage
|
1000V AC/minute
|
|
Operating temperature
|
-25°C to +85°C
|
|
Insulation resistance
|
1000MΩ Min
|
|
Contact resistance
|
20MΩ Max.
|
Material Specification:
Terminal: Phosphor Bronze ,Tin plated /gold plated
Housing: PA66,UL94V-0
Wafer: Nylon 66 UL94V-0
PIN: Brass,Gold plated/Tin plated
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
Primary Competitive Advantages:
- Service
- Country of Origin
- Experienced Staff
- Guarantee/Warranty
- International Approvals
- Price
- Prompt Delivery
- Quality Approvals
|
Main Export Markets:
- Asia
- Australia
- Central/South America
- Mid East/Africa
- North America
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
